| Place of Origin: | China |
|---|---|
| Brand Name: | MCLLROY |
| Certification: | CE,ISO9001 |
| Model Number: | MCL940 ZL940 |
| Minimum Order Quantity: | 1 Set |
| Price: | $ 4000-6000 /Unit |
| Packaging Details: | Nude ，3 Sets Fasten Packing in 1 40HQ |
| Delivery Time: | 5-8 working days |
| Payment Terms: | 30% T / T in advance and 70% balance before shipment Or 100% L/C at sight |
| Supply Ability: | 100 sets / month |
| Moving Type: | Wheel Loader | Type: | Front Loader |
|---|---|---|---|
| Engine Power: | 76kw | Engine Brand: | Yunnei YN4102 Supercharged |
| Emissions: | EU Stage II | Condition: | New |
| Rated Load: | 2200kg | Bucket Capacity: | 1.2m3 |
| Dumping Height: | 3500mm | Alex: | Large-Hub |
| Max. Travel Speed: | 28 Km/h | Machine Weight: | 5800KG |
| Dimension(long * Breadth * High): | 6330*2170*3080mm | After-sales Service Provided: | Engineers Available To Service Machinery Overseas,Video Technical Support,Online Support |
| Hydraulic Cycle Time -: | ≤ 6 S | Min. Ground Clearance: | 400 Mm |
| Axle Base: | 2560 Mm | Brake: | Air Brake |
| Wheel Base: | 1640 Mm | Dump Reach: | ≤ 650 Mm |
| Highlight: | 3500mm Mini Front End Wheel Loader,Compact Mini Front End Wheel Loader,2200kg Mini Front End Wheel Loader |
||
1. Products Description
we need the construction machine to do heavy work, obviously it has to be efficient, take loader as an example, the bucket should shovel as much as possible, the loader should be stable while working, the control should be flexible and easy, the malfunction rate is low of course.

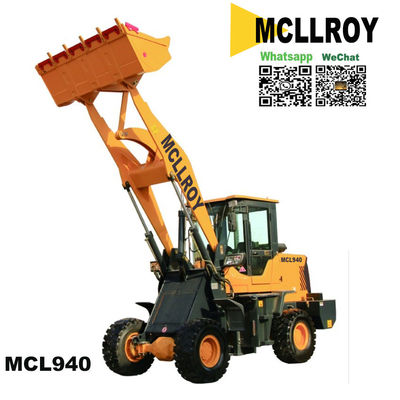

MCLLROY wheel Loader is a kind of front wheel loader with single bucket ,articulated and hydraulic unloading. It has been developed and designed in accordance with user requirements, reference models after absorption of domestic and overseas advanced similar structural features and advanced technology.
2. Specification
| MODEL | MCL 940 | |
| ENGINE | Engine Model | Yun Nei 4102 Supercharged |
| RPM | 2400 | |
| Rated Power | 76 kW | |
| Emissions | EU Stage II | |
| WEIGHTS | Operating Weight | 6100 kg |
| Rated Load | 2800 kg | |
| BUCKETS | Bucket Capacities | 1.2 m³ |
| TRANSMISSION | Max. Travel Speed | 28 km/h |
| Gear Box | CVT 280 torque converter |
|
| Alex | Large hub | |
| Axle Base | 2560 mm | |
| Brake | Air Brake | |
| HYDRAULIC SYSTEM | Hydraulic Cycle time - lift | ≤ 6 s |
| DIMENSIONS(APPROXIMATE) | Min. Ground Clearance | 400 mm |
| Wheel Base | 1640 mm | |
| Reach at Max.Dump Height | 3600 mm | |
| Dump Reach | ≤ 650 mm | |
| Overall Length - With Bucket | 6240 mm | |
| Overall Width | 2040 mm | |
| Overall Height | 2830 mm | |
| OPERATING SPECIFICATIONS | Tyre Size | 1670-24 |
| Breakout Force | 52 KN | |
| Joystick | Machanical | |
| Min. turning radius | ≤ 6200 mm | |
| STANDARD EQUIPMENT | Hour meter | Yes |
| Tool Box | Yes | |
| Dual Hight&Low Speed Handle | Yes | |
| OPTIONAL EQUIPMENT | Air Conditioning/heater | Option |
| Quick Change | Option | |
| Multifunctional Attachment | Option | |
| Hydraulic Pilot | Option | |
3. Details and Advantages
The main components of the loader are used brand-name manufacturer's products, interchangeability of good, reliable, well-resourced parts.
1) Engine:Domestic famous engines ,green/turbocharged/inter-cooled engine.
2) Transmission:Wet multi-plate clutch automatic transmission ,torque converter ,stable performance ,famous brand in China.
3) Axle: Heavy-duty axle ,planetary reduction ,solid and durable ,with the corresponding tires ,for the loader to provide.
4) Hydraulic system:High Efficiency and energy conservation patented dual-pump confluence technology .
5) Tire:38% Rubber content tire,Wider off-road tire
6) Frame:The newest design ,small center precision turning radius, stable and thickened frame,strong and durable.
7) Cab:
I. Radio.
II. Air conditioner.
III. Central electrical control box for easier servicing.
VI. Hydraulic brake system gas cap,caliper disc brake.
8) Gull-wing Engine Doors make access and daily maintenance easy.
4. Inspection
The inspection is as important as any other procedure. After checking the tire pressure,level of bucket,hydraulic oil,bolts and track width,MCLLROY technicians usually need to inspect the followings(Parts II) :
1) Check the meters reading on dash board inside the cab,including
n brake pump pressure: 0.4-0.8;
n lubricant oil pressure: 0.2-0.6;
n water temperature: check if it is too high after the testing;
n torque converter pressure: 2.2-2.4
n (at full load and step heavily on the accelerate pedal)
2) Check if head light, tail light, on and off switch of different functions, and radio operating normally, if electric wires are exposed.
