Welcome to MCLLROY！
| Place of Origin: | China |
|---|---|
| Brand Name: | MCLLROY |
| Certification: | CE,ISO9001 |
| Model Number: | MCL940 ZL940 |
| Minimum Order Quantity: | 1 Set |
| Price: | $ 4000-6000 /Unit |
| Packaging Details: | Nude ，3 Sets Fasten Packing in 1 40HQ |
| Delivery Time: | 5-8 working days |
| Payment Terms: | 30% T / T in advance and 70% balance before shipment Or 100% L/C at sight |
| Supply Ability: | 100 sets / month |
| Moving Type: | Wheel Loader | Type: | Front Loader |
|---|---|---|---|
| Engine Power: | 76kw | Engine Brand: | Yunnei YN4102 Supercharged |
| Emissions: | EU Stage II | Condition: | New |
| Rated Load: | 2200kg | Bucket Capacity: | 1.2m3 |
| Dumping Height: | 3500mm | Alex: | Large-Hub |
| Max. Travel Speed: | 28 Km/h | Machine Weight: | 5800KG |
| Dimension(long * Breadth * High): | 6330*2170*3080mm | After-sales Service Provided: | Engineers Available To Service Machinery Overseas,Video Technical Support,Online Support |
| Color: | Customize | Attachments: | Fork,Snow Bucket,Kinds,trencher |
| Axle Base: | 2560 Mm | Brake: | Air Brake |
| Highlight: | Mini Shovel Running hour meter |
||
1. Products Description
In general, for construction machinery, the four most important factors are: price, quality, operation, and after-sales.
The amount of shovel material and the stability of the loader depend on the cooperation of the loader frame.
The flexibility and light operation mainly depends on the hydraulic system of the loader.
The low failure rate depends on quality as well as the after-sales service.
MCLLROY wheel Loaders are widely used in the construction, municipal engineering, urban and rural gardens, lime, sand, cement factories, mines and other enterprises and institutions and departments. It is particularity applied to the narrow space for the loading operation of stone,sand and other construction materials.
2. Specification

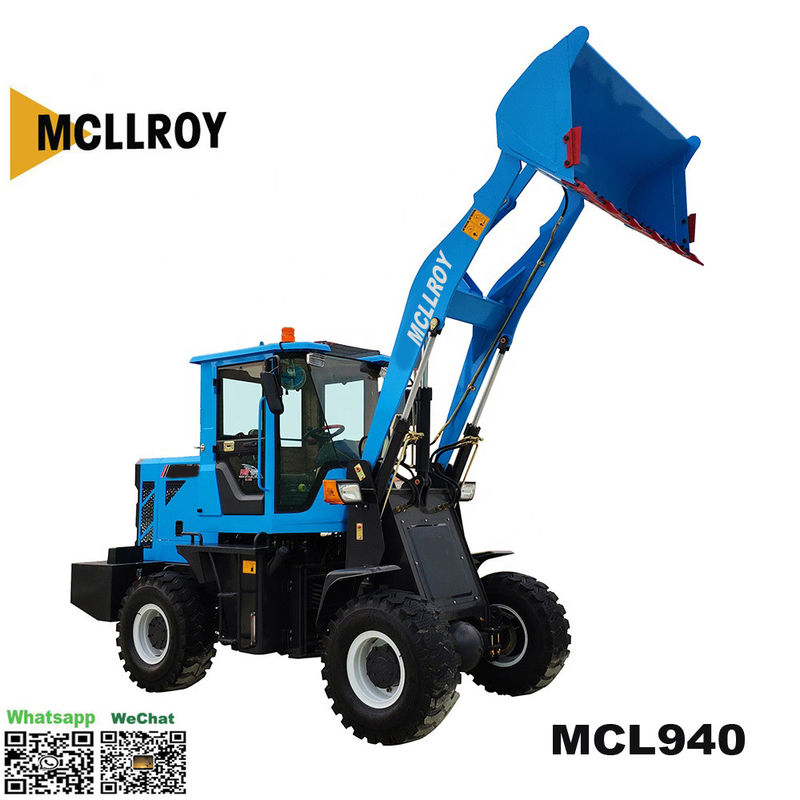

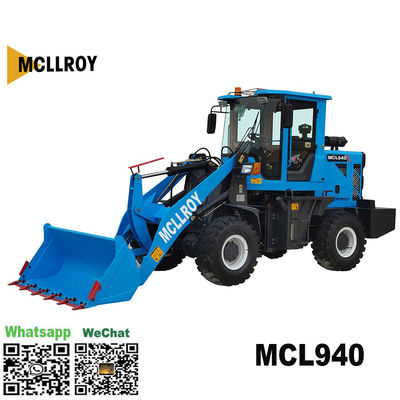

| MODEL | MCL 940 | |
| ENGINE | Engine Model | Yun Nei 4102 Supercharged |
| RPM | 2400 | |
| Rated Power | 76 kW | |
| Emissions | EU Stage II | |
| WEIGHTS | Operating Weight | 6100 kg |
| Rated Load | 2800 kg | |
| BUCKETS | Bucket Capacities | 1.2 m³ |
| TRANSMISSION | Max. Travel Speed | 28 km/h |
| Gear Box | CVT 280 torque converter |
|
| Alex | Large hub | |
| Axle Base | 2560 mm | |
| Brake | Air Brake | |
| HYDRAULIC SYSTEM | Hydraulic Cycle time - lift | ≤ 6 s |
| DIMENSIONS(APPROXIMATE) | Min. Ground Clearance | 400 mm |
| Wheel Base | 1640 mm | |
| Reach at Max.Dump Height | 3600 mm | |
| Dump Reach | ≤ 650 mm | |
| Overall Length - With Bucket | 6240 mm | |
| Overall Width | 2040 mm | |
| Overall Height | 2830 mm | |
| OPERATING SPECIFICATIONS | Tyre Size | 1670-24 |
| Breakout Force | 52 KN | |
| Joystick | Machanical | |
| Min. turning radius | ≤ 6200 mm | |
| STANDARD EQUIPMENT | Hour meter | Yes |
| Tool Box | Yes | |
| Dual Hight&Low Speed Handle | Yes | |
| OPTIONAL EQUIPMENT | Air Conditioning/heater | Option |
| Quick Change | Option | |
| Multifunctional Attachment | Option | |
| Hydraulic Pilot | Option | |
3. Details and Advantages
The main components of the loader are used brand-name manufacturer's products, interchangeability of good, reliable, well-resourced parts.
1) Tire:38% Rubber content tire,Wider off-road tire
2) Frame:The thickened frame has strong impact resistance and remarkable passing performance, enabling the loader to pass unimpeded in the difficult working environment.
3) Cab:Large space in the H-series cab The low-noise and shock-absorbing cab
4) The brake caliper is exposed to facilitate servicing.
5) The bucket with high wear-resistant material even is used for stone.
4.Production lines:
A complete production process mainly includes: material procurement-steel plate cutting-welding-spray painting -drying-assembly-inspection
Assembly:
Our factory arrange seven steps for assembly. There are over a thousand parts in a loader. I will talk about assembly of major components.
Second step is to connect the engine and gearbox together, install drive shafts, add engine lubricant. oil, connect the pipeline of working pump and walking pump.
At this point ,don't forget to apply sealant on working pumps and walking pumps , apply oil seals, tighten screws, to ensure there will be no oil leaking; adding engine lubricant. oil is important (there are winter lubricant. oil and summer lubricant. oil, the oil suitable for winter is relatively thin, the oil used in summer is relatively thick ).
Two workers work together to finish the task.
Similar Model:
Cat 903D/906M/907M/908M
XCMG LW156/LW160/LW180/LW186/LW200
Liugong 816C
SDLG LG916 LG918 L918
