Construction Mining 5 Ton Front End Loader With 4m3 Bucket

Construction Mining 5 Ton Front End Loader With 4m3 Bucket
Construction Mining 5 Ton Front End Loader With 4m3 Bucket Construction Mining 5 Ton Front End Loader With 4m3 Bucket Construction Mining 5 Ton Front End Loader With 4m3 Bucket Construction Mining 5 Ton Front End Loader With 4m3 Bucket Construction Mining 5 Ton Front End Loader With 4m3 Bucket Construction Mining 5 Ton Front End Loader With 4m3 Bucket Construction Mining 5 Ton Front End Loader With 4m3 Bucket Construction Mining 5 Ton Front End Loader With 4m3 Bucket Construction Mining 5 Ton Front End Loader With 4m3 Bucket
Basic Information
Place of Origin: China
Brand Name: MCLLROY
Certification: CE,ISO9001
Model Number: MC956F
Minimum Order Quantity: 1 Set
Price: $20000-$30000 per unit
Packaging Details: Nude,One Set Fasten Packing in One 40HQ
Delivery Time: 5-8 working days
Payment Terms: 30% T / T in advance and 70% balance before shipment Or 100% L/C at sight
Supply Ability: 100 sets / month
Get Best Price Contact Now Chat Now
  • Detail Information
  • Product Description
Type: Front Loader Moving Type: Wheel Loader
Condition: New Rated Load: 5000kg
Bucket Capacity: 3.8-4.0m3 Dimensions: 8280*3080*3420mm
Engine: Weichai WD10G210E22 Rated Power: 162kw
Operating Weight: 17110kg Wheelbase: 3250mm
Dumping Height: 3230mm Unloading Distance: 1220mm
Gradeability: 30 Degree Color: Customize,According To The Customer's Requiement
Warranty: One Year Or 1000 Working Hours After-sales Service Provided: Engineers Available To Service Machinery Overseas,Free Spare Parts,Video Technical Support,Online Support
High Light:

Mining 5 Ton Front End Loader

,

Construction 5 Ton Front End Loader

,

4m3 Mining Front End Loader

5 Ton Rated Load Front End Wheel Loader Machine For Construction and Mining With 4 Cubic Meter Bucket And Weichai Engine

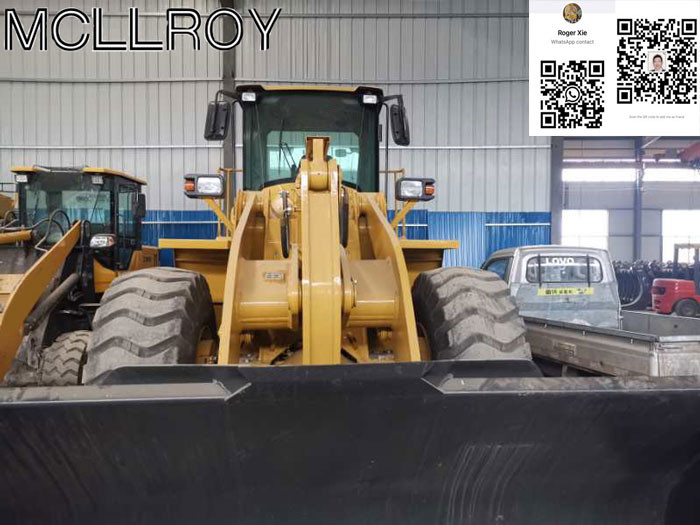

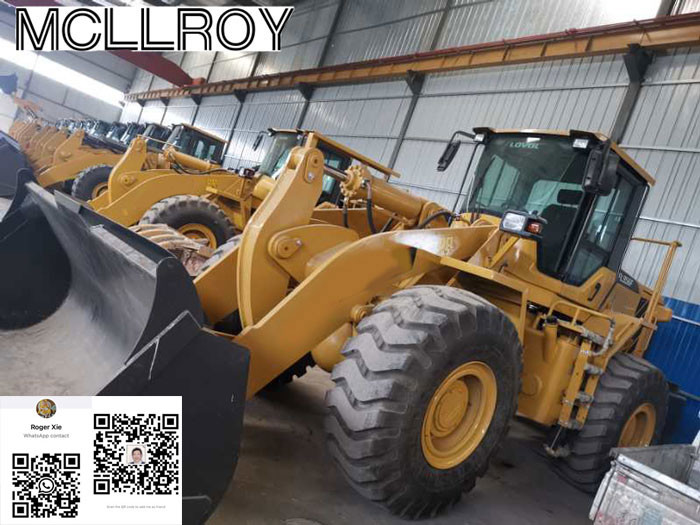

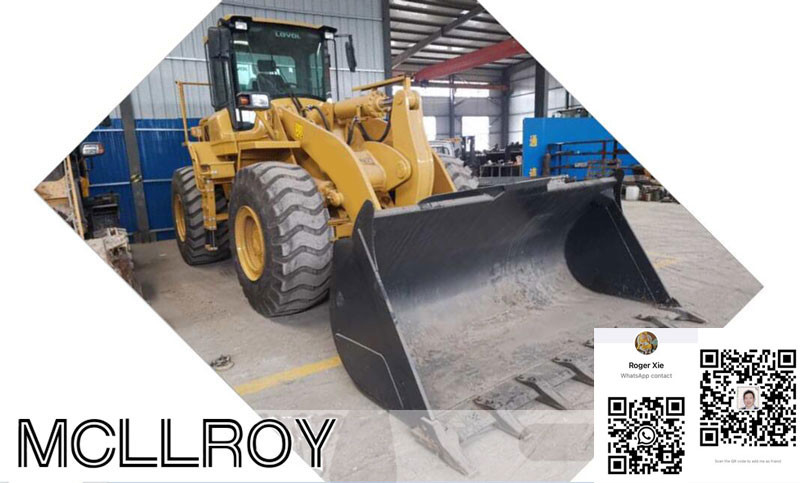

Product Display



Construction Mining 5 Ton Front End Loader With 4m3 Bucket 0



Construction Mining 5 Ton Front End Loader With 4m3 Bucket 1



Construction Mining 5 Ton Front End Loader With 4m3 Bucket 2



Construction Mining 5 Ton Front End Loader With 4m3 Bucket 3



Product Details



Construction Mining 5 Ton Front End Loader With 4m3 Bucket 4     Construction Mining 5 Ton Front End Loader With 4m3 Bucket 5



Construction Mining 5 Ton Front End Loader With 4m3 Bucket 6       Construction Mining 5 Ton Front End Loader With 4m3 Bucket 7



Construction Mining 5 Ton Front End Loader With 4m3 Bucket 8       Construction Mining 5 Ton Front End Loader With 4m3 Bucket 9



Specifications



Performance 1 rated loading 5000kg
2 overall weight 17500kg
3 bucket capacity 3.8-4.0m3
4 maximum traction force 160KN
5 maximum breakout force 160KN
6 maximum grade ability 30℃
7 maximum dump height 3230mm
8 maximum dump reach 1220mm
9 overall dimension (L×W×H) 8280*3080*3420mm
10 bucket outter turning radius 7060mm
11 digging depth(minimum) 150 mm
12 operation mass  17110KG
13 max angle of steering 37°
Engine 14 model Weichai WD10G210E22
15 type In-line, water-cooled, direct injection, 4 stroke
16 number of cylinders, bore*stroke Six, 105*130mm
17 rated power 162kw—2200r/min
18 maximum torque 920N.m
19 min. fuel-consume ratio ≦210Kw h
20 emission standards 9.726 L, Euro Ⅱ
21 Fuel tank 320L
Transmission system 22 gearbox mode Power shaft normally engaged straight gear
23 gears 2 forward 1 reverse
24 maximum speed 42km/h
Drive axles 25 main differential bevel gear grade one reduction
26 side differential mode Planetary reduction grade one
27 wheel base (mm) 3250mm
28 wheel tread 2150mm
29 ground clearance 440mm
Hydraulic system 30 hydraulic oil tank 134L
31 system working pressure 16,5MPa
32 boom lifting time 5.60
33 fastest total cycle time  10.6±0.5s
Brake system 34 service brake air assist disc brake on 4 wheels
35 parking brake Manual disk brake
Tyre 36 tyre specification 23.5-25
37 front tyre pressure 0.4Mpa
38 rear tyre pressure 0.35Mpa




Packing & Delivery

Construction Mining 5 Ton Front End Loader With 4m3 Bucket 10  Construction Mining 5 Ton Front End Loader With 4m3 Bucket 11

Tyres, axles, driver's cabin, and bucket will be disassembled in order to fit in the 40HQ. Four manual carriers will be used to transport the

loader into the container.





Optional Attachments



Construction Mining 5 Ton Front End Loader With 4m3 Bucket 12

Factory Tour

A complete production process mainly includes: material procurement-steel plate cutting-welding-spray painting -drying-assembly-inspection.



Online or onsite factory tour is available, scan the QR code on the photos, add me on Whatsapp or Wechat, and contact me for arrangement.

Construction Mining 5 Ton Front End Loader With 4m3 Bucket 13



Certifications

CE certificate for wheel loader, backhoe loader,excavator ,mixer truck .etc.
ISO 9001:2015 Quality management system certification.

Construction Mining 5 Ton Front End Loader With 4m3 Bucket 14



FAQ

Q1: Are you trading Company or Factory?
A: We are factory. We have been engaged in the production of concrete mixer ,wheel loader, excavator backhoe loader with pump for more than 15 years.

Q2: How about the quality of your products?
A: We are factory with more than 15years of construction machinery manufacturing experience. All of our machines are manufactured strictly according to the national and international standards, and we take a test on each equipment before delivery.

Q3: How about the price?
A: We are factory, not dealer, so we can give you a lower price than those trade companies can.

Q 4: Do you provide after-sale service?
A: Yes. The warranty period of our machines is one year, and we have a professional after-sale service team to promptly and thoroughly solve your problems.

Q5 : Do you provide equipment operation training?
A: Yes. We can send professional engineers to the working site for equipment installation, adjustment, and operation training. All of our engineers have passports.

Q6.: How long is your delivery time
A: Generally it is around 7-10 days.



Q7: What is your acceptable payment terms.
A: By T/T. 30% deposit in advance, balance to be paid before delivery.
or By irrevocable LC at Sight.
