Welcome to MCLLROY！
| Place of Origin: | China |
|---|---|
| Brand Name: | MCLLROY |
| Certification: | CE,ISO9001 |
| Model Number: | MCL936 ZL936 |
| Minimum Order Quantity: | 1 Set |
| Price: | $ 4000-6000 /Unit |
| Packaging Details: | Nude ，3 Sets Fasten Packing in 1 40HQ |
| Delivery Time: | 5-8 working days |
| Payment Terms: | 30% T / T in advance and 70% balance before shipment Or 100% L/C at sight |
| Supply Ability: | 100 sets / month |
| Moving Type: | Wheel Loader | Dimension(long * Breadth * High): | 6025*2000*3000mm |
|---|---|---|---|
| Condition: | New | Dumping Height: | 3500mm |
| Machine Weight: | 5300KG | Engine Power: | 65kw |
| Type: | Front Loader | After-sales Service Provided: | Engineers Available To Service Machinery Overseas,Video Technical Support,Online Support |
| Color: | Customize | Attachments: | Fork,Snow Bucket,Kinds,trencher |
| Engine Brand: | Yunnei YN4100 Supercharged | Alex: | Middle-Hub |
| Brake Type: | Air Brake | Air Conditioner: | Option |
| Hydraulic Pilot: | Option | Running Hour Meter: | Option |
1. Products Description
we need the construction machine to do heavy work, obviously it has to be efficient, take loader as an example, the bucket should shovel as much as possible, the loader should be stable while working, the control should be flexible and easy, the malfunction rate is low of course.

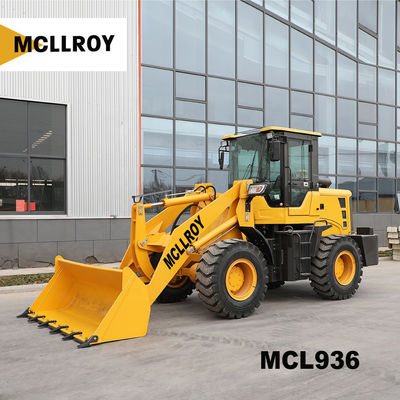

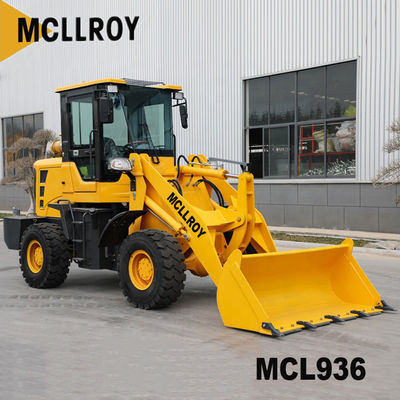

MCLLROY wheel Loader is a kind of front wheel loader with single bucket ,articulated and hydraulic unloading. It has been developed and designed in accordance with user requirements, reference models after absorption of domestic and overseas advanced similar structural features and advanced technology.
2. Specification
| Model | MCL936 ZL936 |
||
| Rated Load | kg | 2000 | |
| Dipper Bucket Capacity | m³/m | 1.1/2.0m | |
| Max.Dump Clearance | mm | 3500 | |
| Dump Reach | mm | 1650 | |
| Overall Size (L*W*H) | mm | 6025*2000*3000 | |
| Engine Model | YN4100 Supercharged | ||
| Rated power | kw | 65 | |
| speed/min | rpm | 2400 | |
| Gear Box | 280B Split Torque converter | ||
| Alex | M-hub reductro | ||
| Operating Weight | kg | 5300 | |
| Articulated | Articulated | ||
| Tyre Size | 1670-20 | ||
| Joystick included | Mechanical | ||
| Aircon | included | ||
| Hydraulic pilot(option) | Without | ||
| running hour meter | running hour meter | ||
| air brake | air brake | ||
3. Details and Advantages
The main components of the loader are used brand-name manufacturer's products, interchangeability of good, reliable, well-resourced parts.
1) Frame:High Reliability Upgraded & enhanced front & back frames ,and reinforced counterweight.
2) Cab:Comfortable Operation Ergonomic design for more comfortable operation.
3) Convenient maintenance leading-out grease fitting is convenient for lubrication.
4) Ladder with wide steps and well-placed hand holds to ease entry and exit from the cabin.
4. Inspection
The inspection is as important as any other procedure. After checking the tire pressure,level of bucket,hydraulic oil,bolts and track width,MCLLROY technicians usually need to inspect the followings(Parts II) :
1) Check the meters reading on dash board inside the cab,including
n brake pump pressure: 0.4-0.8;
n lubricant oil pressure: 0.2-0.6;
n water temperature: check if it is too high after the testing;
n torque converter pressure: 2.2-2.4
n (at full load and step heavily on the accelerate pedal)
2) Check if head light, tail light, on and off switch of different functions, and radio operating normally, if electric wires are exposed.
Similar Model:
Cat 903D/906M/907M/908M
XCMG LW156/LW160/LW180/LW186/LW200
Liugong 816C
SDLG LG916 LG918 L918
