| Place of Origin: | China |
|---|---|
| Brand Name: | MCLLROY |
| Certification: | CE,ISO9001 |
| Model Number: | MCL936 ZL936 |
| Minimum Order Quantity: | 1 Set |
| Price: | $ 4000-6000 /Unit |
| Packaging Details: | Nude ，3 Sets Fasten Packing in 1 40HQ |
| Delivery Time: | 5-8 working days |
| Payment Terms: | 30% T / T in advance and 70% balance before shipment Or 100% L/C at sight |
| Supply Ability: | 100 sets / month |
| Moving Type: | Wheel Loader | Dimension(long * Breadth * High): | 6025*2000*3000mm |
|---|---|---|---|
| Condition: | New | Dumping Height: | 3500mm |
| Machine Weight: | 5300KG | Engine Power: | 65kw |
| Type: | Front Loader | After-sales Service Provided: | Engineers Available To Service Machinery Overseas,Video Technical Support,Online Support |
| Color: | Customize | Attachments: | Fork,Snow Bucket,Kinds,trencher |
| Engine Brand: | Yunnei YN4100 Supercharged | Alex: | Middle-Hub |
| Frame: | Articulated | Tire: | 1670-20 |
| Joystick: | Mechanical |

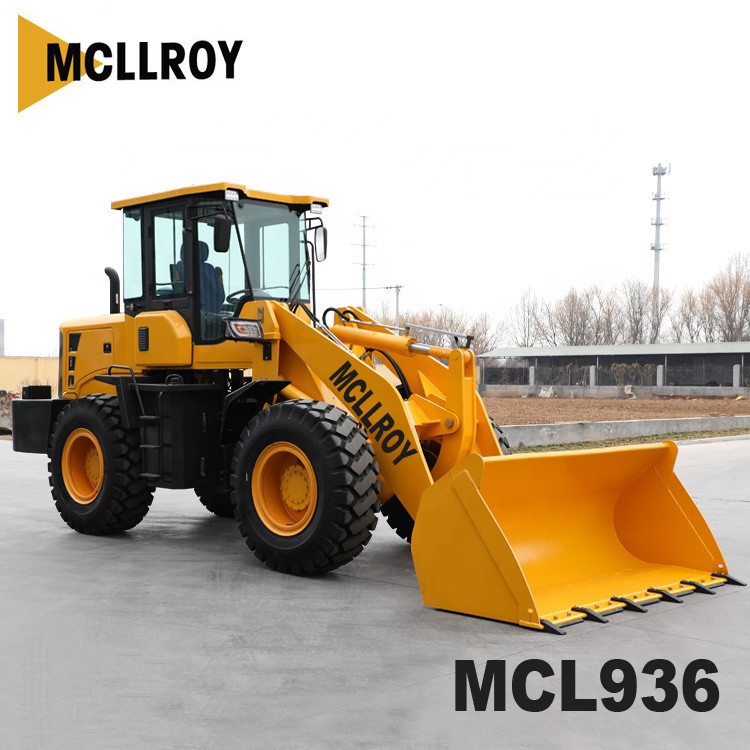

1. Products Description
MCLLROY wheel loader is wildly used in construction, agriculture ,garden,etc. And we are experiencing in making high quality efficiency productivity.Strong power and chassis help to muddy road condition,flexible turning is suitable for small space ,excellent unloading height helpful for loading.
For the axle of this loader, we use cast steel small axle housing. There are iron axle and Isuzu axle on the market. The axles play a key role in loader working and walking. Especially under severe working conditions, the internal forces of the axles is large. A good axle allows users to drive safely and work with confidence.
2. Specification
| Model | MCL936 ZL936 |
||
| Rated Load | kg | 2000 | |
| Dipper Bucket Capacity | m³/m | 1.1/2.0m | |
| Max.Dump Clearance | mm | 3500 | |
| Dump Reach | mm | 1650 | |
| Overall Size (L*W*H) | mm | 6025*2000*3000 | |
| Engine Model | YN4100 Supercharged | ||
| Rated power | kw | 65 | |
| speed/min | rpm | 2400 | |
| Gear Box | 280B Split Torque converter | ||
| Alex | M-hub reductro | ||
| Operating Weight | kg | 5300 | |
| Articulated | Articulated | ||
| Tyre Size | 1670-20 | ||
| Joystick included | Mechanical | ||
| Aircon | included | ||
| Hydraulic pilot(option) | Without | ||
| running hour meter | running hour meter | ||
| air brake | air brake | ||
3. Details and Advantages
The main components of the loader are used brand-name manufacturer's products, interchangeability of good, reliable, well-resourced parts.
1) Engine:Strong driven force ,low fuel consumption ,high economic benefits.
2) Transmission:Split torque converter,not high temperature,easy to repair.
3) Hydraulic system:Open hydraulic system,constant flow gear pump ,heat treatment gear,provide stable high pressure oil for wheel loader.
4) Tire:A variety of patterns to adapt to different perorations ,solid tires available.
4.Production lines:
A complete production process mainly includes: material procurement-steel plate cutting-welding-spray painting -drying-assembly-inspection
Assembly:
Our factory arrange seven steps for assembly. There are over a thousand parts in a loader. I will talk about assembly of major components.
Second step is to connect the engine and gearbox together, install drive shafts, add engine lubricant. oil, connect the pipeline of working pump and walking pump.
At this point ,don't forget to apply sealant on working pumps and walking pumps , apply oil seals, tighten screws, to ensure there will be no oil leaking; adding engine lubricant. oil is important (there are winter lubricant. oil and summer lubricant. oil, the oil suitable for winter is relatively thin, the oil used in summer is relatively thick ).
Two workers work together to finish the task.
Similar Model:
Cat 903D/906M/907M/908M
XCMG LW156/LW160/LW180/LW186/LW200
Liugong 816C
SDLG LG916 LG918 L918
