Welcome to MCLLROY！
| Place of Origin: | China |
|---|---|
| Brand Name: | MCLLROY |
| Certification: | CE,ISO9001 |
| Model Number: | MCL936 ZL936 |
| Minimum Order Quantity: | 1 Set |
| Price: | $5000-7000 /Unit |
| Packaging Details: | Nude ，3 Sets Fasten Packing in 1 40HQ |
| Delivery Time: | 5-8 working days |
| Payment Terms: | 30% T / T in advance and 70% balance before shipment Or 100% L/C at sight |
| Supply Ability: | 100 sets / month |
| Moving Type: | Wheel Loader | Dimension(long * Breadth * High): | 6025*2000*3000mm |
|---|---|---|---|
| Condition: | New | Dumping Height: | 3500mm |
| Machine Weight: | 5300KG | Engine Power: | 65kw |
| Type: | Front Loader | After-sales Service Provided: | Engineers Available To Service Machinery Overseas,Video Technical Support,Online Support |
| Color: | Customize | Attachments: | Fork,Snow Bucket,Kinds,trencher |
| Engine Brand: | Yunnei YN4100 Supercharged | Alex: | Middle-Hub |
| Brake Type: | Air Brake | Air Conditioner: | Option |
| Hydraulic Pilot: | Option | Running Hour Meter: | Option |
| High Light: | 2.5 Ton Wheel Loader Machine,Wheel Loader Machine 65kw,88hp Front Wheel Loader |
||
1. Products Description
we need the construction machine to do heavy work, obviously it has to be efficient, take loader as an example, the bucket should shovel as much as possible, the loader should be stable while working, the control should be flexible and easy, the malfunction rate is low of course.

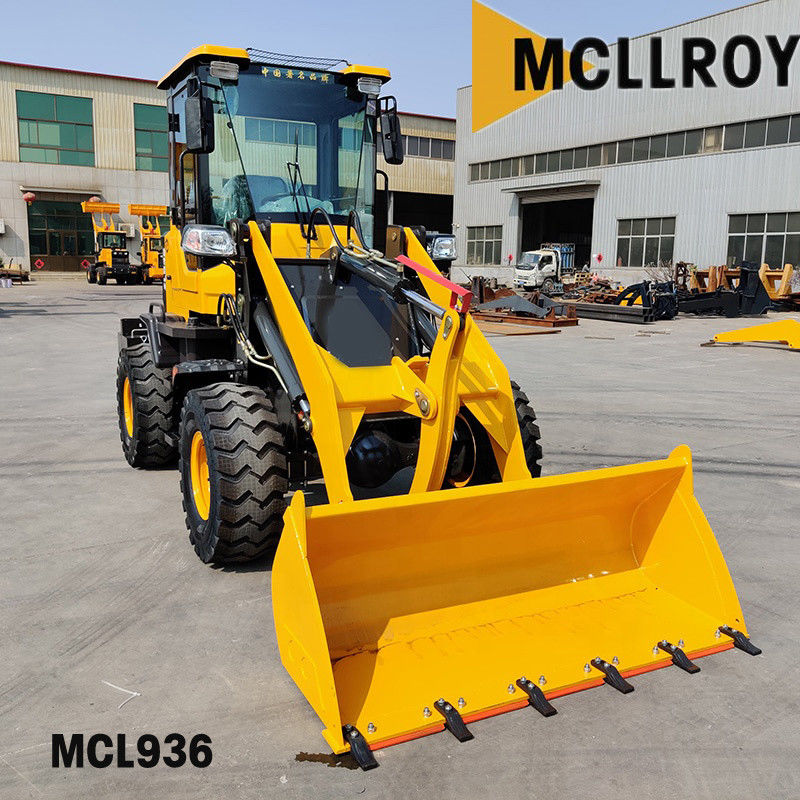

MCLLROY wheel Loader is a kind of front wheel loader with single bucket ,articulated and hydraulic unloading. It has been developed and designed in accordance with user requirements, reference models after absorption of domestic and overseas advanced similar structural features and advanced technology.
2. Specification
| Model | MCL936 ZL936 |
||
| Rated Load | kg | 2000 | |
| Dipper Bucket Capacity | m³/m | 1.1/2.0m | |
| Max.Dump Clearance | mm | 3500 | |
| Dump Reach | mm | 1650 | |
| Overall Size (L*W*H) | mm | 6025*2000*3000 | |
| Engine Model | YN4100 Supercharged | ||
| Rated power | kw | 65 | |
| speed/min | rpm | 2400 | |
| Gear Box | 280B Split Torque converter | ||
| Alex | M-hub reductro | ||
| Operating Weight | kg | 5300 | |
| Articulated | Articulated | ||
| Tyre Size | 1670-20 | ||
| Joystick included | Mechanical | ||
| Aircon | included | ||
| Hydraulic pilot(option) | Without | ||
| running hour meter | running hour meter | ||
| air brake | air brake | ||
3. Details and Advantages
The main components of the loader are used brand-name manufacturer's products, interchangeability of good, reliable, well-resourced parts.
1) Engine:Domestic famous engines ,green/turbocharged/inter-cooled engine.
2) Transmission:Wet multi-plate clutch automatic transmission ,torque converter ,stable performance ,famous brand in China.
3) Axle: Heavy-duty axle ,planetary reduction ,solid and durable ,with the corresponding tires ,for the loader to provide.
4) Hydraulic system:Precision hydraulic cylinder and the fourth generation hydraulic transmission system give large breakout force for earth-moving work.
4.Production lines:
A complete production process mainly includes: material procurement-steel plate cutting-welding-spray painting -drying-assembly-inspection
Assembly:
Our factory arrange seven steps for assembly. There are over a thousand parts in a loader. I will talk about assembly of major components.
First, our workers will assemble the front frame, rear frame, swing frame, front axle, rear axle together, and then install air tank, relief valve, air booster pump on the frame.
At this step, the worker should pay attention to the tightness of the screws and adjust the gap: for example, the hinged part is not supposed to move up and down and must be tight (can be shaken left and right); there is also a gap between the swing frame and rear frame, which can be moved up and down, but not back and forth; and Gear oil should be added to the front and rear axles.
Similar Model:
Cat 903D/906M/907M/908M
XCMG LW156/LW160/LW180/LW186/LW200
Liugong 816C
SDLG LG916 LG918 L918
