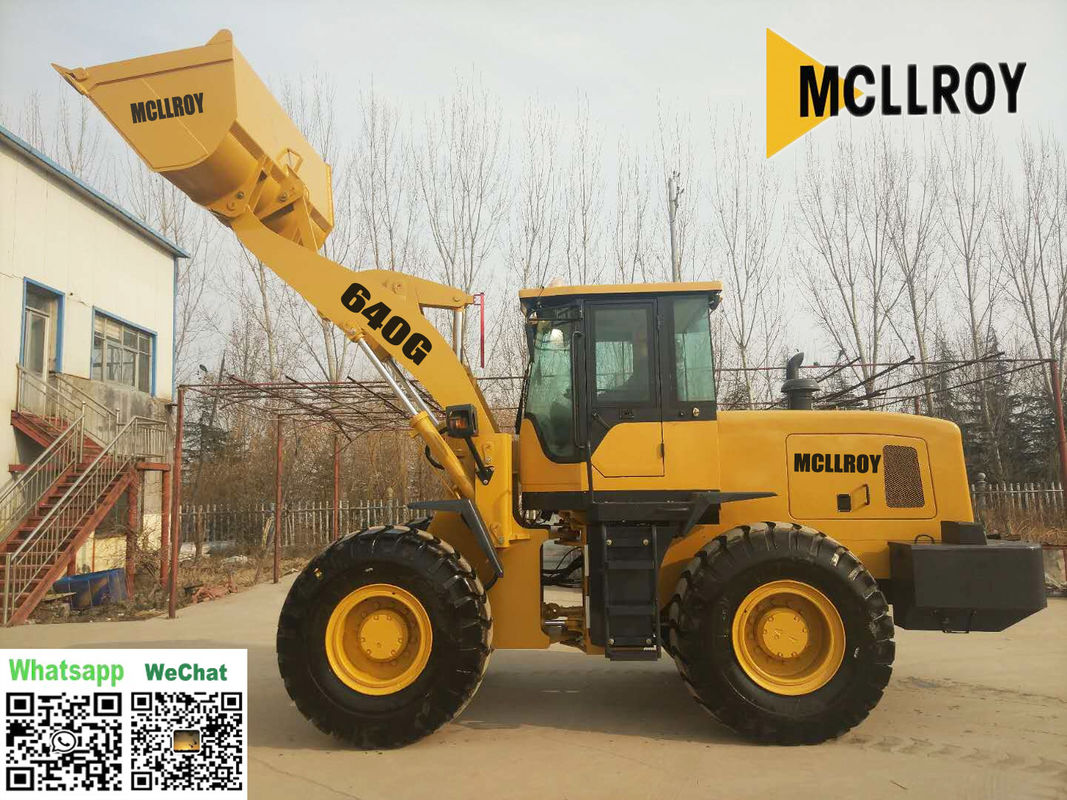

Articulated 4 Ton Wheel Loader , Mine Front End Loader 129kw

MCL640G Small 4 Ton Wheel Loader Weichai Engine Articulated Customized Color Wheel Loader





1. Products Description

MCLLROY wheel Loader is a kind of front wheel loader with single bucket ,articulated and hydraulic unloading.

It has been developed and designed in accordance with user requirements, reference models after absorption of domestic and similar structural features and advanced technology.
It is widely used in the construction, municipal engineering, urban and rural gardens, lime, sand, cement factories, mines and other enterprises and institutions and departments.

It is paticularly applied to the narrow space for the loading operation of stone,sand and other construction materials.

The main components of the loader are used brand-name manufacturer's products, interchangeability of good, reliable, well-resourced parts.



2. Specifications

Performance	1	rated loading	4000kg
	2	overall weight	11000kg
	3	bucket capacity	2.0-2.5m3
	4	maximum traction force	95KN
	5	maximum breakout force	127KN
	6	maximum grade ability	30℃
	7	maximum dump height	3200mm
	8	maximum dump reach	1260mm
	9	overall dimension (L×W×H)	7560*2440*3300mm
	10	minimum turning radius	5929mm
	11	Digging depth(minimum)	150 mm
	12	Tipping load	9860KG
	13	Max angle of steering	45°
Engine	14	model	Weichai WP6G175E311
	15	type	In-line, water-cooled, direct injection, 4 stroke
	16	NO. of cylinder-bore*stroke	Six, 105*130mm
	17	rated power	129kw—2000r/min
	18	maximum torque	640N.m
	19	min. fuel-consume ratio	≦210Kw h
	20	Emission standards	Euro Ⅱ
Transmission system	21	torque converter	YJ315-X
	22	gearbox mode	Power shaft normally engaged straight gear
	23	gears	2 forward 1 reverse
	24	maximum speed	38km/h
Drive axles	25	main differential	bevel gear grade one reduction
	26	Side differential mode	Planetary reduction grade one
	27	wheel base (mm)	2820mm
	28	wheel tread	1300mm
	29	ground clearance	400mm
Hydraulic system	30	system working pressure	16,5MPa
	31	boom lifting time	4.83
	32	total time	9.15±0.5s
Brake system	33	service brake	air assist disc brake on 4 wheels
	34	parking brake	Manual disk brake
Tyre	35	type specification	20.5-25
	36	front tyre pressure	0.4Mpa
	37	rear tyre pressure	0.35Mpa



3. Details and advantages

1,Central articulated frame, small turning radius, mobile and flexible, lateral stability, ease of operation in the narrow space.

2,Easy-to-read gauges display and ergonomically designed controls make the driving convenient and comfortable

3,Air over hydraulic disc brake on 4 wheels system and expire brake is used in brake system, which has large brake force and makes stable brake and high safety

4,Full hydraulic steering, power shift transmission, hydraulic control device work with two lightweight flexible operation, action smooth and reliable

5,Twin pump-merging flow of working pump and steering pump. when the machine is not steering more engine power is available to breakout and lift forces. Resulting in increased economy

6,The big loading engine side covers made in steel are of good appearance and suitable for maintenance

7,Pilot hydraulic implement controls make operate easy and comfortable



4. Attachment

This compact wheel loader can be equipped with optional quick hitch , and this quick hitch enables this compact wheel loader to change quickly among multiple attachments, such as hay grapple, grass fork, wood fork, timber grapple, pallet fork, bale grapple, four-in-one bucket, straight snow blade, V-shaped snow plow, snow bucket, drum grab, barrel grapple, snow blower, street sweeper and sand bucket etc.



5. Production lines

A complete production process mainly includes: material procurement-steel plate cutting-welding-spray painting -drying-assembly-inspection



6.Delivery and shipping

1.Tool box put in the loader.

2.Seat and control panel warp in PVC.

3.Warning lights put in the loader.

4.Drive the loader inside the Container.

5.Stabilize the loader with steel rope.

6.Fasten triangles wood in front of the tire.

7.Close and seal the door ready for shipment.





7.Certifications

CE certificate for wheel loader, backhoe loader,excavator ,mixer truck .etc.
ISO 9001:2015 Quality management system certification.



8.Feedbacks from overseas



9.FAQ

Q1: Are you trading Company or Factory?
A: We are factory. We have been engaged in the production of concrete mixer ,wheel loader, excavator backhoe loader with pump for more than 15 years.

Q2: How about the quality of your products?
A: We are factory with more than 15years of construction machinery manufacturing experience. All of our machines are manufactured strictly according to the national and international standards, and we take a test on each equipment before delivery.

Q3: How about the price?
A: We are factory, not dealer, so we can give you a lower price than those trade companies can.

Q 4: Do you provide after-sale service?
A: Yes. The warranty period of our machines is one year, and we have a professional after-sale service team to promptly and thoroughly solve your problems.

Q5 : Do you provide equipment operation training?
A: Yes. We can send professional engineers to the working site for equipment installation, adjustment, and operation training. All of our engineers have passports.

Q6.: How long is your delivery time
A: Generally it is around 7 days.



Q7: What is your acceptable payment terms.
A: By T/T. 30% deposit in advance, balance to be paid before delivery.
or By irrevocable LC at Sight.
