| Place of Origin: | China |
|---|---|
| Brand Name: | MCLLROY |
| Certification: | CE,ISO9001 |
| Model Number: | MCL932 ZL932 |
| Minimum Order Quantity: | 1 Set |
| Price: | $ 4000-6000 /Unit |
| Packaging Details: | Nude ，3 Sets Fasten Packing in 1 40HQ |
| Delivery Time: | 5-8 working days |
| Payment Terms: | 30% T / T in advance and 70% balance before shipment Or 100% L/C at sight |
| Supply Ability: | 100 sets / month |
| Engine Model: | Yun Nei 490 Supercharged | RPM: | 2400 |
|---|---|---|---|
| Rated Power: | 58 KW | Emissions: | EU Stage II |
| Operating Weight: | 3670 Kg | Rated Load: | 1800 Kg |
| Bucket Capacities: | 0.6-1.0 M³ | Max. Travel Speed: | 28 Km/h |
| Gear Box: | CVT 265 Torque Converter | Axle Base: | 2210 Mm |
| Highlight: | 2 Ton Wheel Loader Shovel,Garden 2 Ton Wheel Loader,Small Wheel Loader Shovel |
||

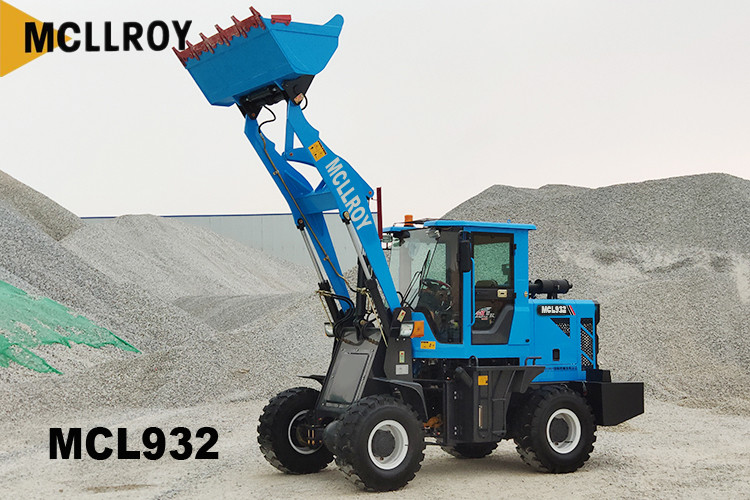

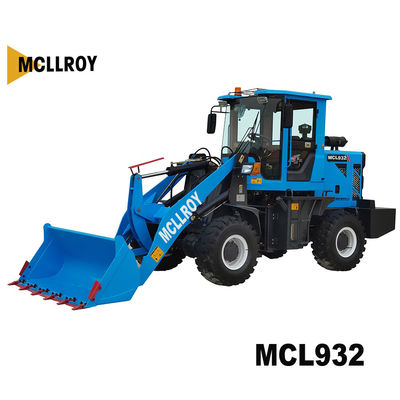

1. Products Description
MCLLROY wheel loader is wildly used in construction, agriculture ,garden,etc. And we are experiencing in making high quality efficiency productivity.Strong power and chassis help to muddy road condition, flexible turning is suitable for small space ,excellent unloading height helpful for loading.
For the axle of this loader, we use cast steel small axle housing. There are iron axle and Isuzu axle on the market. The axles play a key role in loader working and walking. Especially under severe working conditions, the internal forces of the axles is large. A good axle allows users to drive safely and work with confidence.
2. Specification
| MODEL | MCL 932/ZL 932 | Metric Units |
| ENGINE | Engine Model | Yun Nei 490 Supercharged |
| RPM | 2400 | |
| Rated Power | 58 kW | |
| Emissions | EU Stage II | |
| WEIGHTS | Operating Weight | 3670 kg |
| Rated Load | 1800 kg | |
| BUCKETS | Bucket Capacities | 0.6-1.0 m³ |
| TRANSMISSION | Max. Travel Speed | 28 km/h |
| Gear Box | CVT 265 torque converter |
|
| Alex | Small hub | |
| Axle Base | 2210 mm | |
| Brake | Disc Brake | |
| HYDRAULIC SYSTEM | Hydraulic Cycle time - lift | ≤ 7 s |
| DIMENSIONS(APPROXIMATE) | Min. Ground Clearance | 290 mm |
| Wheel Base | 1490 mm | |
| Reach at Max.Dump Height | 3200 mm | |
| Dump Reach | ≤ 650 mm | |
| Overall Length - With Bucket | 5300 mm | |
| Overall Width | 1820 mm | |
| Overall Height | 2670 mm | |
| OPERATING SPECIFICATIONS | Tyre Size | 20.5-16 |
| Breakout Force | 40 KN | |
| Joystick | Machanical | |
| Min. turning radius | ≤ 7000 mm |
3. Details and Advantages
The main components of the loader are used brand-name manufacturer's products, interchangeability of good, reliable, well-resourced parts.
1) Engine:Strong driven force ,low fuel consumption ,high economic benefits.
2) Transmission:Split torque converter,not high temperature,easy to repair.
3) Hydraulic system:Open hydraulic system,constant flow gear pump ,heat treatment gear,provide stable high pressure oil for wheel loader.
4) Tire:A variety of patterns to adapt to different perorations ,solid tires available.
4.Certification
Product quality determines customer satisfaction thus the life span of a company.
MCLLROY not only acknowledged by the ISO9001:2000 international quality control system
and ISO 9001:2015 quality management system certification,but acquired the CE certificate.
MCLLROY CE certificate is for wheel loader, backhoe loader,excavator ,mixer truck .etc.
Similar Model:
Cat 903D/906M/907M/908M
XCMG LW156/LW160/LW180/LW186/LW200
Liugong 816C
SDLG LG916 LG918 L918
